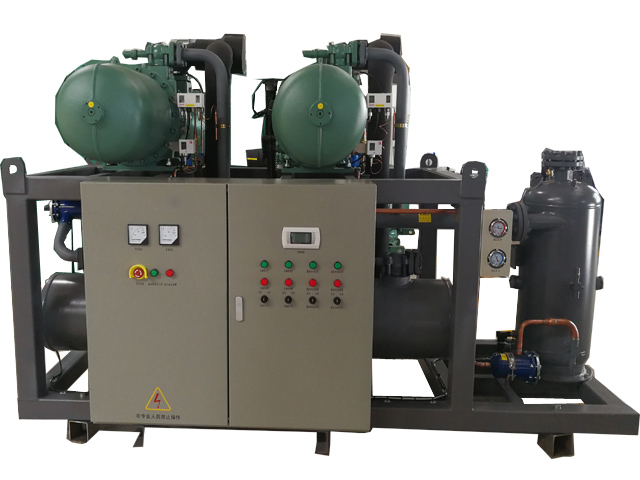

High Temperature Screw Parallel Compressor Unit with PLC for Refrigeration System-Single Compressor Single Stage
Specifications
| Model |
Condensing Temp. |
Cooling capacity(KW) under diff. Evaporating temp. |
Compressor motor power |
Receiver size |
connection pipe size(customized available) |
Dimension |
Operating weight |
| -23 |
-30 |
-40 |
Suction pipe |
Supply pipe |
| |
C |
(kw) |
(L) |
(mm) |
(mm) |
(L×W×H)mm |
(kg) |
| EPBSH2-140 |
35 |
918 |
724 |
498 |
210 |
300 |
159 |
76 |
3300*1750*2050 |
3280 |
| 45 |
826 |
646 |
432 |
Compressor unit Standard Configuration:
Electrical switchgear, Screw type compressor, Exhaust temperature protection, Motor protection, Oil level
switch, Liquid spray connector, Suction stop valve, Exhaust stop valve, External oil separator, Horizontal
rotary valve, Oil heater, Oil temperature controller, Photoelectric level switch, Oil filter, Oil circuit ball valve,
Oil line sight glass, Oil line solenoid valve, Liquid spray ball valve, Liquid spray solenoid valve, Liquid
spray filter, Liquid spray sight glass, Liquid feeding sight glass, High/low pressure controller, Pressure
sensor, reservoir, Safety valve, Liquid drop off valve, Liquid outlet stop valve, Total feed valve, Total
suction stop valve, Total exhaust non-return stop valve, Liquid filter barrel, Suction filter barrel, Oil filter
barrel, Angle valve, Exhaust pipe, Oil high/low pressure gauge, Pressure gauge connection hose, Oil filter
core, Liquid feeding filter core, Suction filter core, Pressure gauge board, etc.
Application
Compressor unit is the main machine for:
- Refrigeration system of cold storage, processing warehouse
- Quick freezing machine e.g. tunnel freezer, spiral freezer
- lab
- brewing
- supermarket display cabinet
- ECOOL Compressor Unit Advantages
- Reliable quality
- Every product is tested strictly before getting out of factory including noise test, vibration test, performance test to ensure a service life above 15 years.
Worry saving
- Less maintenance and repair is needed. All accessories we used are word famous brand with high quality and performance
- Our product doesn't need person to watch the operation, it could turn on and off automatically, adjust the load, record running data, remote control, and fault diagnosis
- With complete protection system against overload, overheat, HP, LP etc, the unit could work normally even in very bad conditions
- Easy operated CAREL controller or PLC controller are both available
- Intelligent cloud mode is available without extra charge for Product with PLC controller, it provides more detail on running status, easy monitorby mobile phone or iPad, andmore details for our technician to give you technical suggestionsremotely
Energy saving.
- Energy saving up to 35%.The design makes the unit automatically change the working numbers of compressor depending on system load, which can save your running cost.
